Description

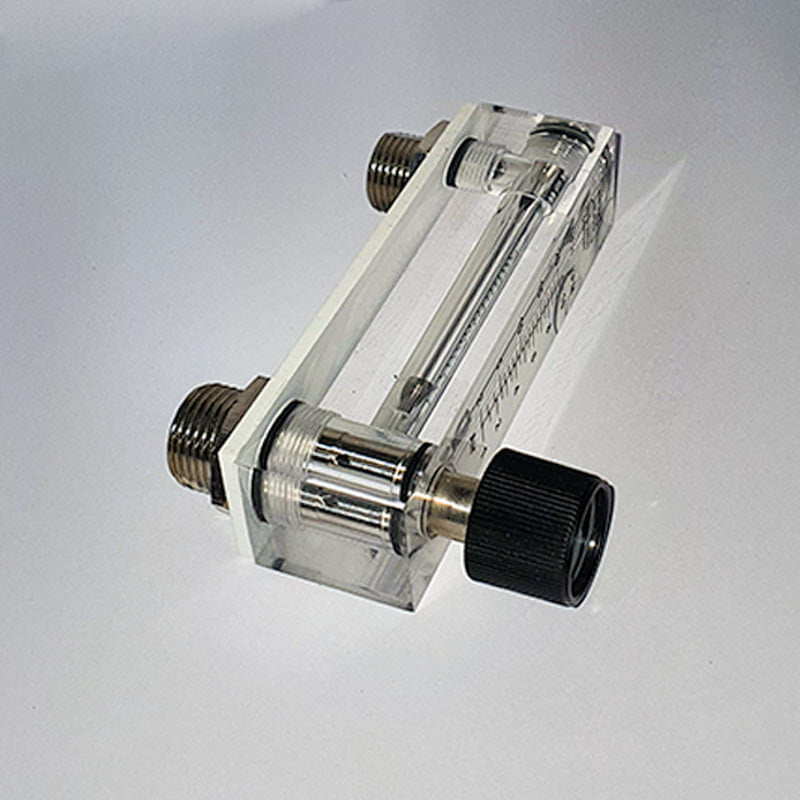

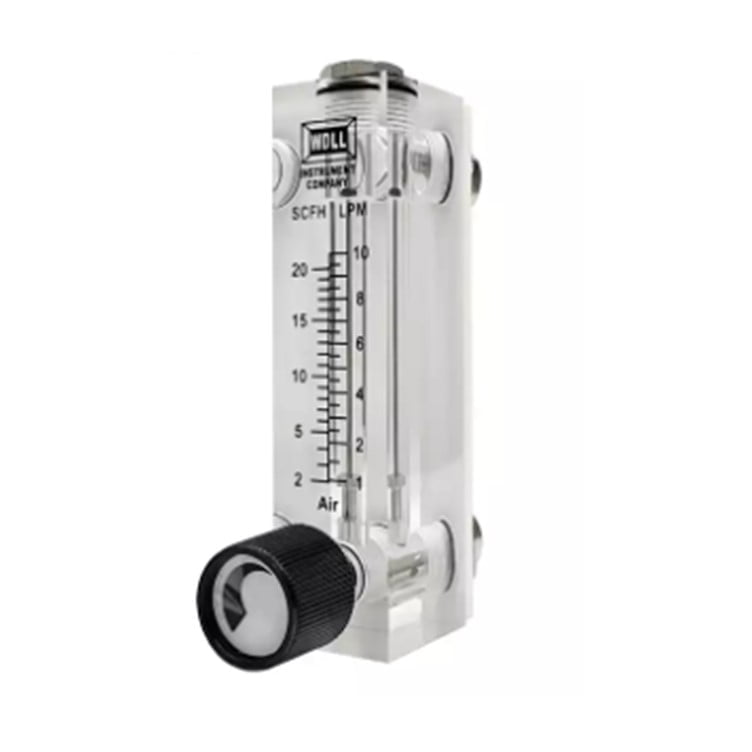

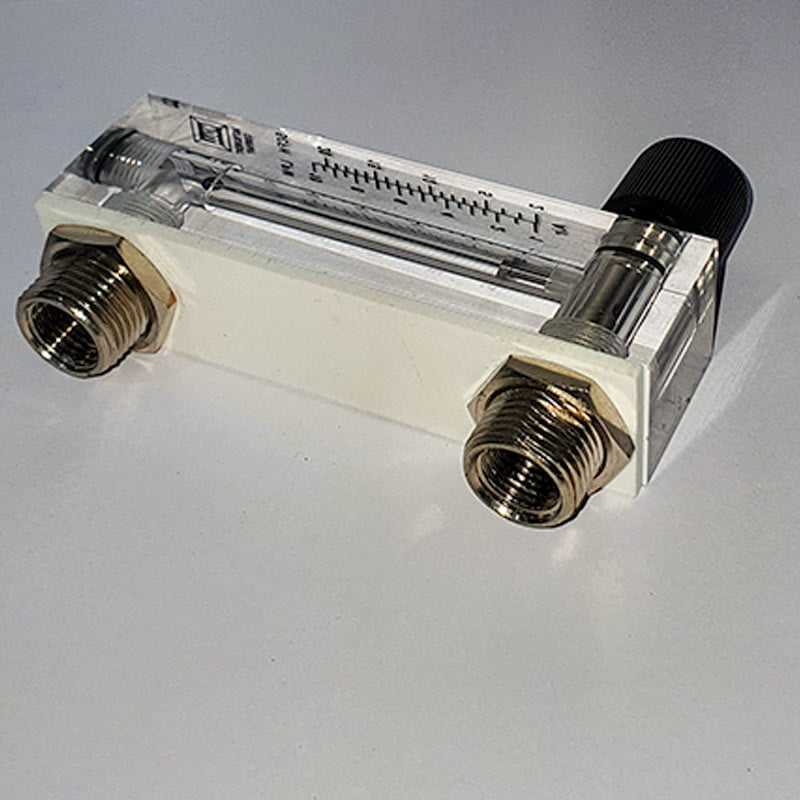

Acrylic panel air flow meter.
Panel air flow meter can be used with an ozone generator to regulate the flow of air input, with adjustable valve, simple, compact, high resistance and long life span. Besides, 316L stainless steel regulating valve and copper fastening screw make it durable.
Measuring Range: 2~20SCFH / 1~10LPM
Multiplicity: ±0.25%FS
Accuracy: ±4%
Maximum pressure: 1MPa/150psig
Maximum temperature: 80°C / 176°F
Material: Body – Acrylic; O-Ring – Silicon Rubber; Fastening Screw – Copper
