Venturi

40.00185.00

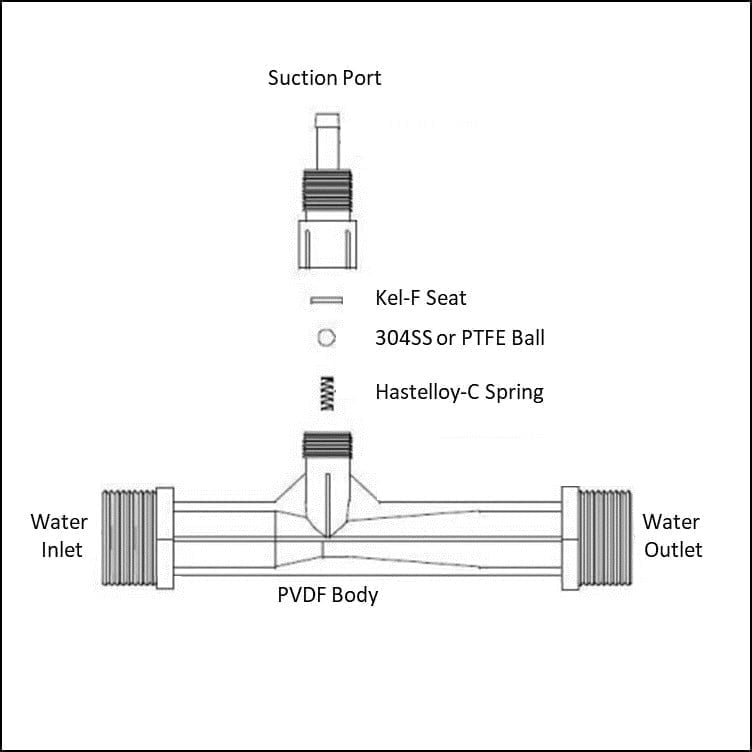

Venturi injector mixer was designed to be used with Ozone generators for water treatment. Made with Ozone compatible material (PVDF), fitting into to the existing pipe system, allows an Ozone injection point, where the vacuum sucks the Ozone into the water flow.

Features:
-Ozone mixing device PVDF material.
-Low flow and small volume capability
-Unique mixing air system, designed to mix Water and Ozone well distributed.
-High efficiency mixing
-Long life service
-Compact structer
-Simple and fast instalation
-Durable PVDF construction

Included:
* English and Portuguese Manual

100% ozone compatible
No electricity needed
Environment friendly
Easy installation
Solution Ozone Quality

Clear

Description

Venturi injector mixer was designed to be used with Ozone generators for water treatment. Made with Ozone compatible material (PVDF), fitting into to the existing pipe system, allows an Ozone injection point, where the vacuum sucks the Ozone into the water flow.

Features:
-Ozone mixing device PVDF material.
-Low flow and small volume capability
-Unique mixing air system, designed to mix Water and Ozone well distributed.
-High efficiency mixing
-Long life service
-Compact structer
-Simple and fast instalation
-Durable PVDF construction

Specifications:
Material: PVDF
Function: Mixing for gas and liquid
Color: Black or White
Certification: CE,RoHS
Type: Accessory

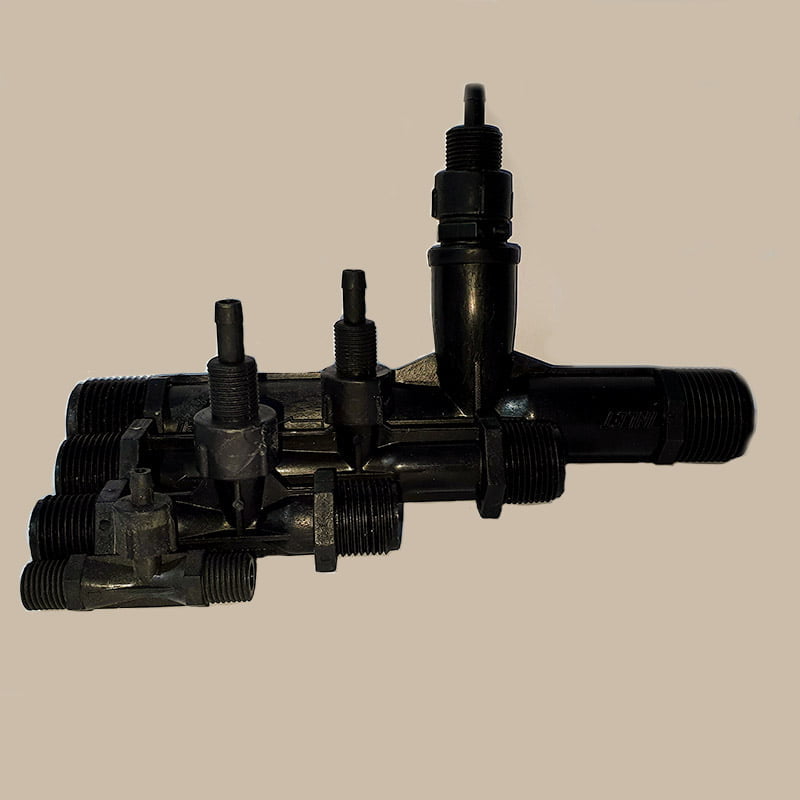

Size: 1/4″,1/2″,3/4″,1″,1.5″,2″
Water pressure: 0.1-0.7Mpa
Water flow: 0.05-50
Overall Length: 57-295mm

Specifications
Size (inch)
1/4
1/2
3/4
1
1.5
2
Water pressure (Mpa)
0.1 - 0.2
0.25 - 0.4
0.25 - 0.5
0.25 - 0.6
0.25 - 0.6
0.3 - 0.7
Inspiratory Capacity (m3/hr)
1 - 3
4 - 7
7.5 -10
11 - 15
22 - 0
37 - 49
Overall lenght

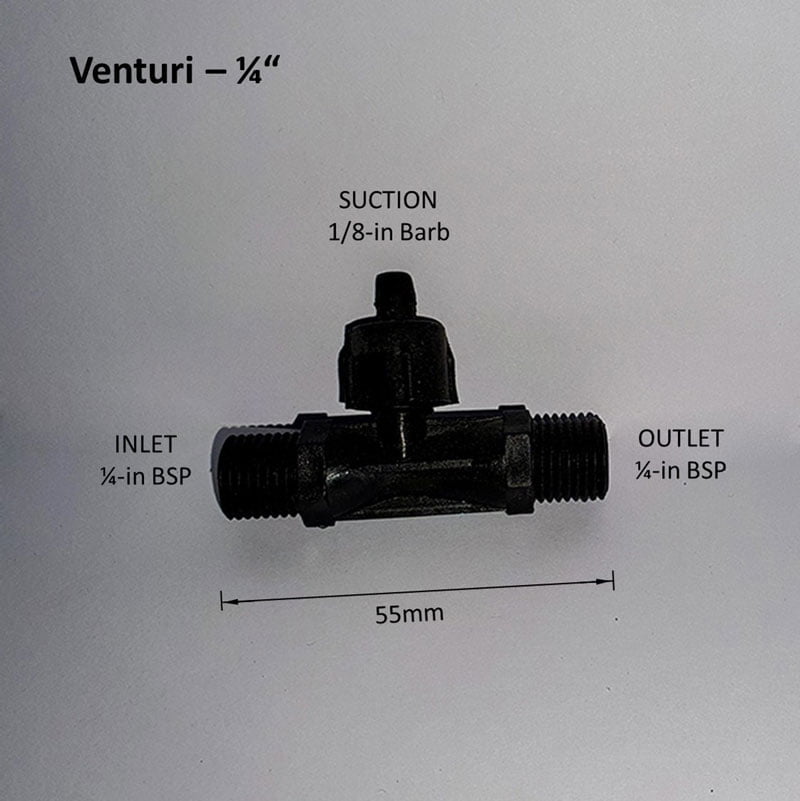

57

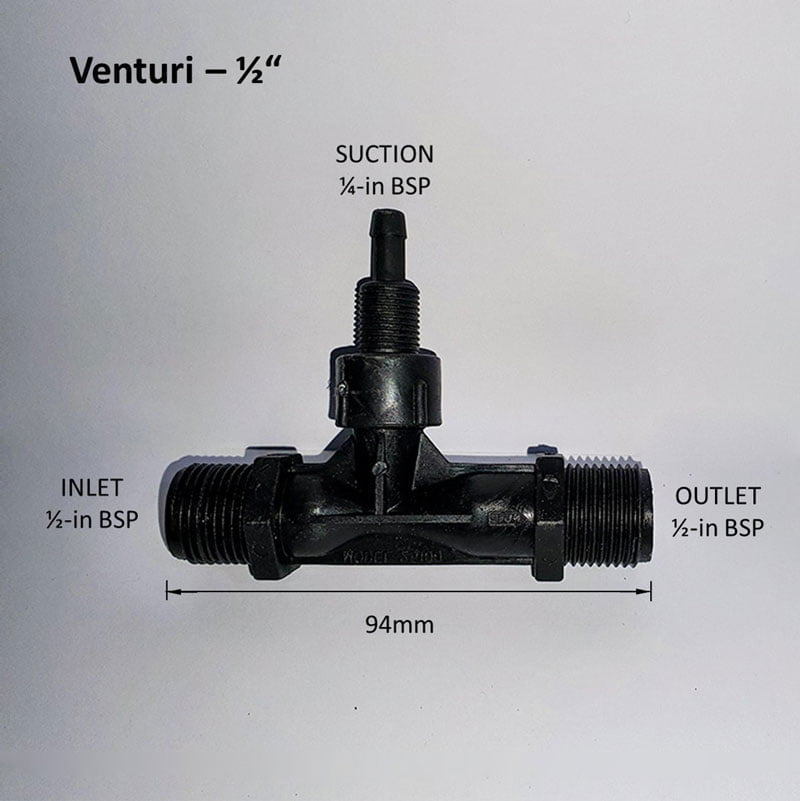

100

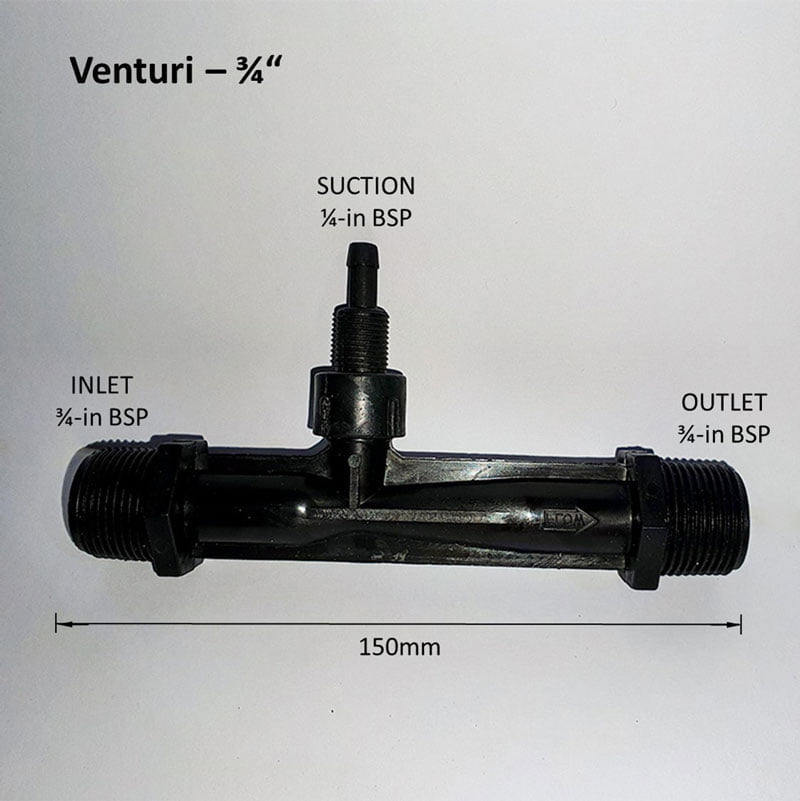

152

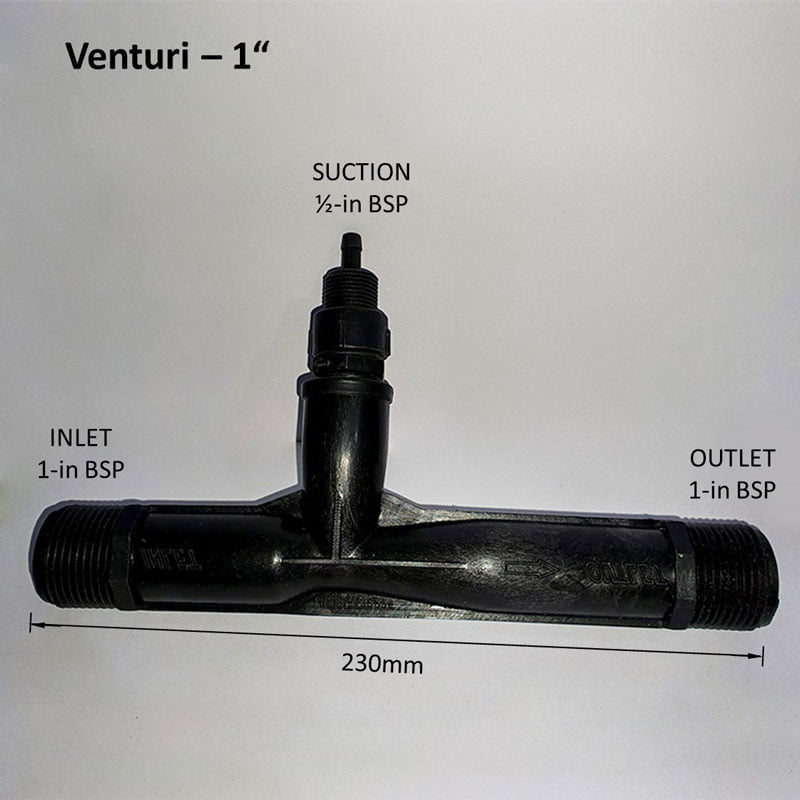

230
275
295
Water flow (m3/hr)
0.05 - 0.2
0.2 - 1
1 - 3
3 - 10
10 - 25
25 - 50

Included:
* English and Portuguese Manual
* Venturi

100% ozone compatible
No electricity needed
Environment friendly
Easy installation
Solution Ozone Quality

Additional information

Weight N/A
Dimensions N/A
Size

1/4, 1/2, 3/4, 1, 1.5, 2
