Clinic Disinfection

780,00  1.550,00

SKU: SSO-O3-CDS0# Categories: ,

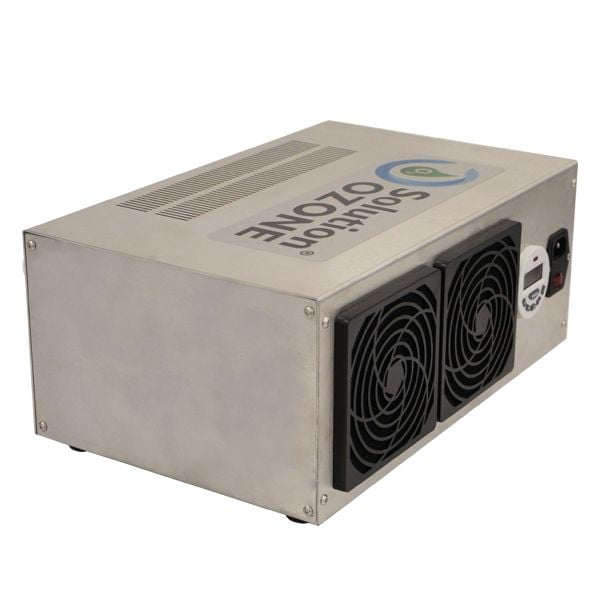

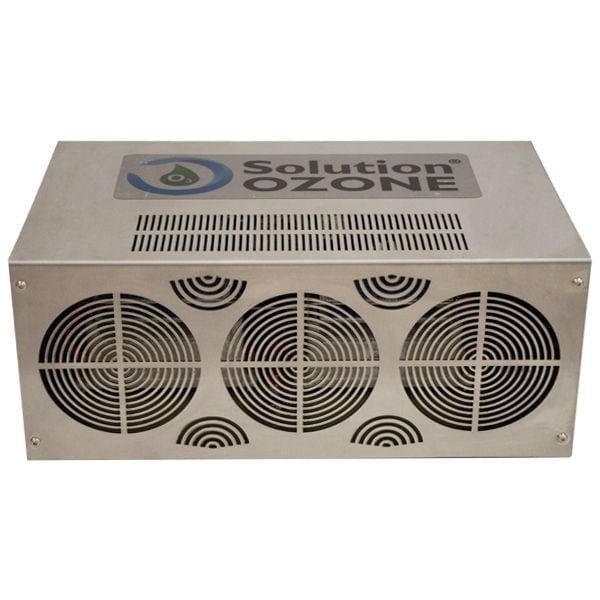

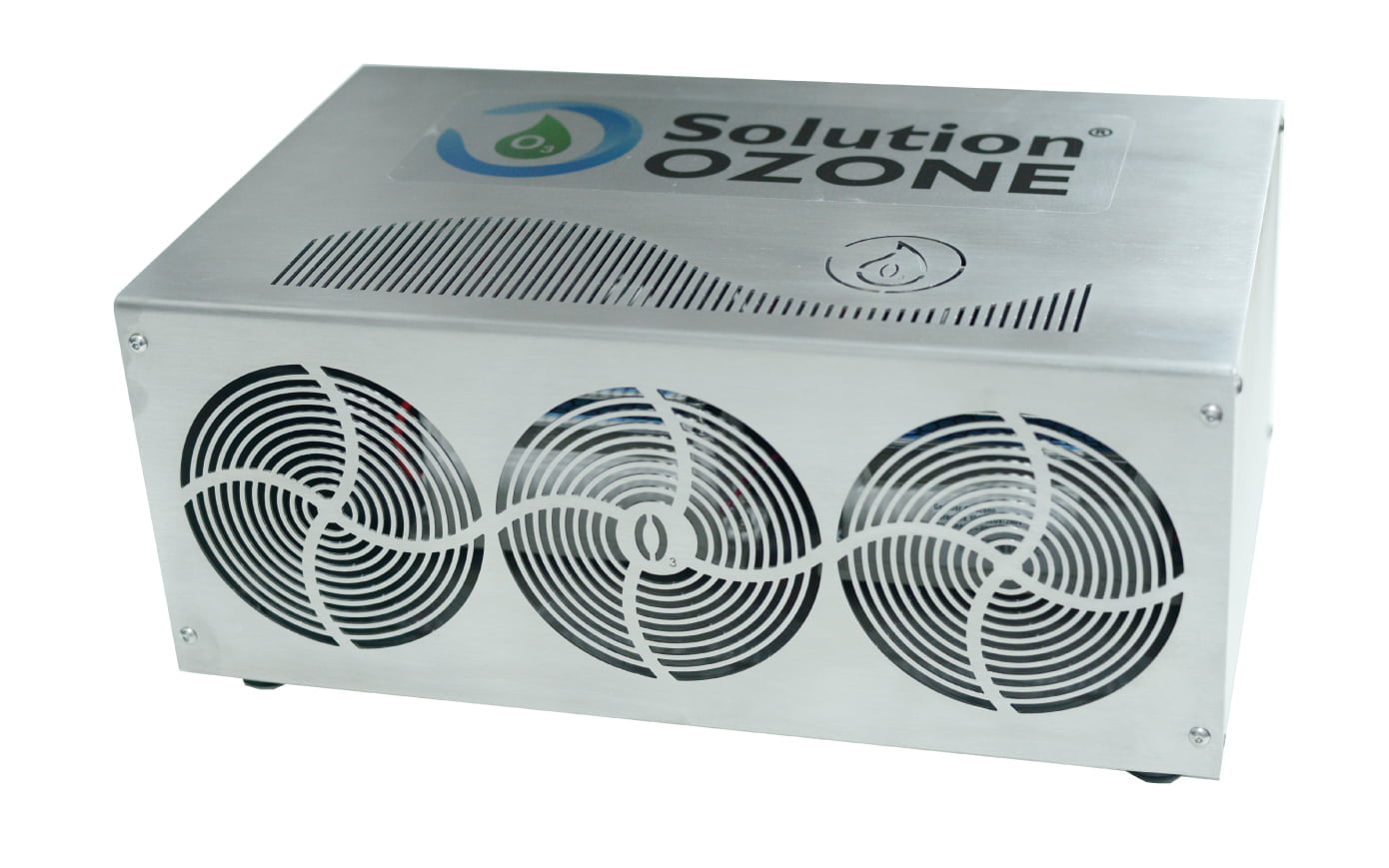

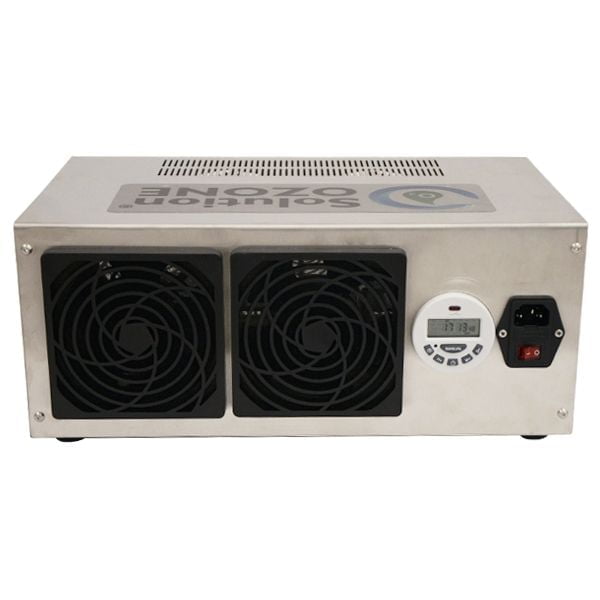

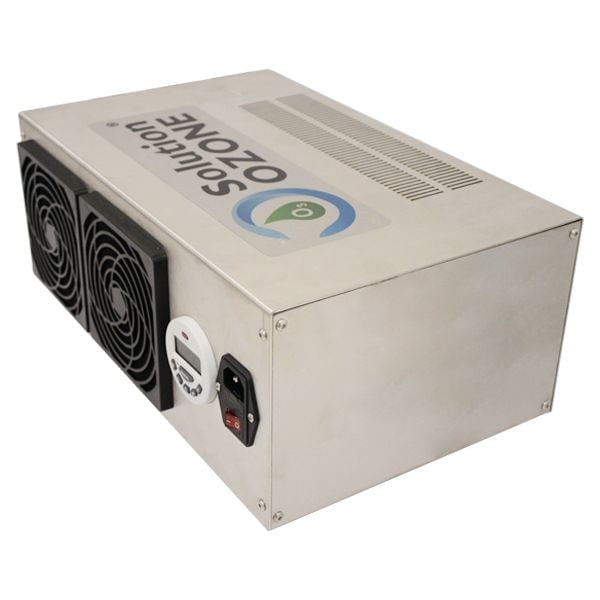

The Clinic O3 Disinfection System is the ideal system to make air disinfection in dental clinics, medical clinics and other rooms where a healthy ambience is needed.

The ozone is the most efficient and natural disinfectant that can be used without use chemicals. It has an oxidative power must more effective than chlorine and does not leave any residual after used.

To purchase this equipment or for more information, send an email to indicating the reference SSO-O3-CDS02-A, SSO-O3-CDS02-B, SSO-O3-CDS04-A or SSO-O3-CDS04-B.


Nowadays people have more awareness of the transmission of respiratory diseases in an indoor environment. There is a need for a reliable and efficient air disinfection method to decontaminate these high-risk areas.

The Clinic O3 Disinfection System is ready to guarantee secure disinfection in clinics by an air disinfection system, room by room.

With 2 different ozone production capacities, this equipment is able to be adapted to different clinics disposals and areas.

With 10g/h or 20 g/h, those equipment are able to produce different concentrations depending on the product reference, and, according to your choice, those equipment are ready to disinfect rooms until 120m².

In addition to the strong oxidizing power of ozone, properties of ozone also help it to be an ideal aerial disinfectant. In contrast to UV radiation and HEPA filter, ozone is a gas that could penetrate to every corner of the room, thus it could disinfect the entire room effectively.

Due to its characteristics and high oxidative power, ozone is one of the most efficient products for the elimination of bacteria, viruses or fungi. It is a 100% natural system that does not require the addition of expensive products that are harmful to health and the environment. As ozone is unstable, it is readily converted back to oxygen, leaving no harmful residual ozone after disinfection.

Ozone Concentration 0.5 ppm 2.5 ppm
Before Ozonization 600 CFU/m³ 600 CFU/m³
After Ozonization 175 CFU/m³ 35 CFU/m³
Reduction (%) 70% 94%

Note: This table refers to tests performed, so the results are approximate as they reflect average values obtained.

Remember that in high concentrations, ozone inhalation can become toxic. Therefore, it is recommended that no one is present in a room where the ozone concentration levels are above 0.1 ppm. In these situations, as a guarantee of absolute security, space must be free for 40 minutes and then people can return normally.

Additional information

Weight 8 kg
Dimensions 44 × 34 × 20 cm

10 g/h – 180 m³/h, 10 g/h – 360 m³/h, 20 g/h – 180 m³/h, 20 g/h – 360 m³/h


Ozone Output 10 g/h 10 g/h 20 g/h 20 g/h
Air Flow 180 m³/h 360 m³/h 180 m³/h 360 m³/h
Thermal Protection Yes Yes Yes Yes
Rated Power 1 A 1,5 A 1,5 A 2 A
400 x 145 x 300mm 400 x 145 x 300mm 400 x 145 x 300mm 400 x 145 x 300mm
Voltage 240 V AC 240 V AC 240 V AC 240 V AC
Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel



User Manual – English

Timer User Manual – English

Manual do Utilizador – Português

Manual do Utilizador do Temporizador – Português
