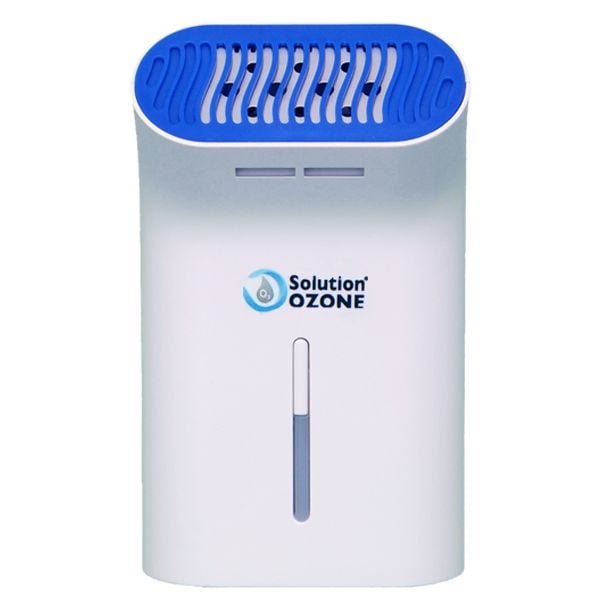

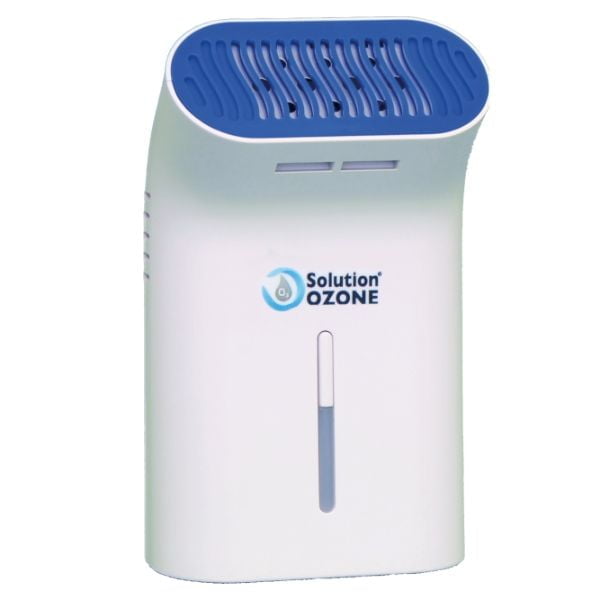

Mini Air Purifier

The Mini Air Purifier combines the beneficial effects of ozone and negative ions to purify the air from small divisions.

Ozone removes odors by changing the chemical structure of molecules that cause a bad smell. It eliminates bacteria and odors and, also, along with the action of negative ions, improves the air quality, removes odors and allergens.

The Mini Air Purifier can be used to remove odors from any room of the house, for example from the kitchen to remove smell after cooking, the smell of animals, tobacco or mold provided that the area is less than or equal to the recommended value.

To purchase this equipment or for more information, send an email to info@solutionozone.com indicating the reference MAP-APSO01.

Description

This air purifier combines the beneficial effects of ozone and negative ions to purify the air from small divisions.

Eliminates bacteria and odors and, in addition, along with the action of negative ions improves air quality, removes odors and allergens.

Negative ions also have the advantage of combating positive ions that are harmful by improving breathing, the immune system, etc., all without leaving any residue.

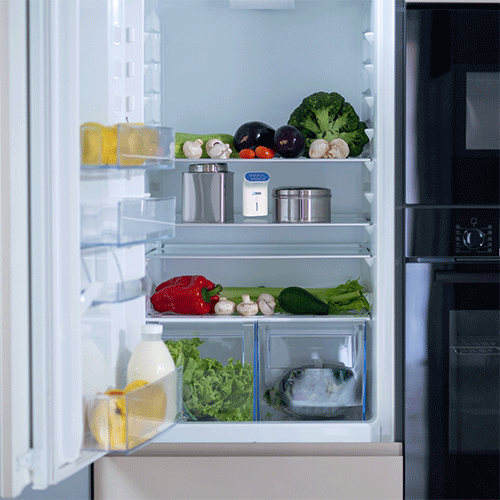

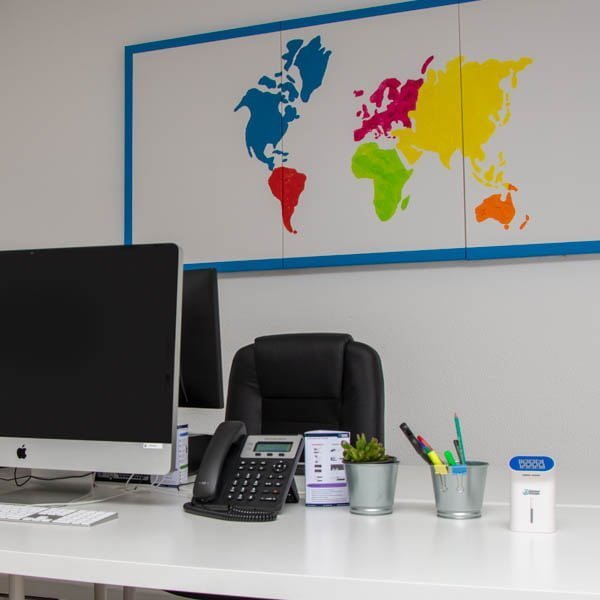

It is ideal to use in spaces such as rooms, offices, closets, walk-in refrigerators (restaurants), among many others.

The Mini Air Purifier can work in two distinct modes, either continuous or per cycle, depending on the need.

In continuous mode the apparatus operates without interruption, this mode only works if the equipment is connected to the current.

On the other hand, in the cyclic mode it operates for two minutes (ON) and breaks for ten minutes (OFF), this mode works with the equipment connected to the current or batteries (4 AA batteries).

In addition to the removal of odors, the oxidizing power of ozone also allows the elimination of viruses and bacteria purifying the air and thus prevents the spread of diseases.

Ozone is one of the most powerful disinfectants even more effective than chlorine. It allows effective disinfection without the need to resort to the use of chemicals.

Ozone is a 100% natural gas formed by 3 oxygen atoms, the third atom being quite unstable, making the ozone in the best conditions last for up to 40 minutes, and then turns back into oxygen.

So the only residue of ozone is oxygen that is already naturally present in the atmosphere and in the air we breathe.

The combination of the beneficial power of ozone along with the action of negative ions improves air quality and removes odors and allergens.

In addition, negative ions also have the advantage of combating positive ions that are harmful by improving breathing, the immune system, circulation, etc.

Ozone tests carried out on samples with 600 CFU / m3 (CFU is the colony-forming unit used to estimate the number of viable bacteria or fungal cells in a sample) reveal the efficiency of ozone by killing most microorganisms definitively.

In the tests carried out, with a concentration of 0.5ppm of ozone, we verified an efficiency in the reduction of 70% of CFU / m3. However, these values rise above 90% when a concentration of 2.5ppm ozone is used.

Ozone Concentration0.5 ppm2.5 ppm
Before Ozonization600 CFU/m³600 CFU/m³
After Ozonization175 CFU/m³35 CFU/m³
Reduction (%)70%94%

Note: This table refers to tests performed, so the results are approximate as they reflect average values obtained.

Remember that in high concentrations, ozone inhalation can become toxic. Therefore, it is recommended that no one is present in a room where the ozone concentration levels are above 0.1 ppm. In these situations, as a guarantee of absolute security, space must be free for 40 minutes and then people can return normally.

Specification

ModelMAP-APSO01
Supply GasAmbient Air
Ozone Output<0.05ppm (0cm distance)
>1.5ppm (continuous mode/1hour/32L)
Anion Output> 2×106pcs/cm3 (10cm distance)
Dimensions122 x 73 x 51 mm
Net Weight126g
Voltage12 V DC
Rated Power<0.5W
MaterialABS Plastic + 316 Stainless Steel
Operating Temperature5 – 45ºC (Range)
Optional Working Mode:
Battery 4 AA batteries (not included)
Input Voltage5 V DC



Manuals

User Manual – English

Manual do Utilizador – Português
